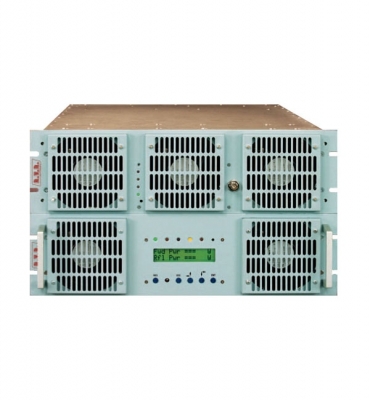

PJ3500M-C is an RF amplifier for frequency
modulation sound broadcasting with a max. rated output of 3500 watts. It
is a fully solid-state apparatus of modern design that uses MOSFET as
active components in the FM amplifying modules. The PJ2500M-C amplifier
is made up of two interconnected modules pre-arranged for assembly in a
The two modules are as follows:
•Control and power supply module.
•RF amplifier module.
Subdividing it into two modules not only makes it easier to handle and assemble the amplifier but also permits to perform maintenance to the two parts separately.
•Exceptionally high gain P.A. with relatively low input.
•Automatic gain control providing fixed output power even in case of fluctuating drive power.
•High reliability, easy handling and consistent performance standard achieved among the various units due to total absence of tuning requirements.
•Very high efficiency of P.A. typically capable of more than 3500 W output power with about
5 W of drive input power.
•Protection for internal and antenna VSWR, exccesive temperature and exccesive drive power, with indicator light, which will put the transmitter driver in stand by position in the event of failure.
•Easily replaceable standard components.
